Inflow Pressure Screen for Paper Making Plant

Name: Inflow Pressure Screen for Paper Making Plant
Brand: HENGBON
Price: 1 USD

Place of Origin : China

Brand Name : HENGBON

Certification : ISO, CE

Model Number : Inflow Pressure Screen for Paper Making Plant

Motor power (Kw) : 7.5-110KW

Material : all parts contact with pulp is stainless steel

Colour : as customers' requirements

MOQ : Min.Order Quantity: 1 Set/Sets

Price : Negotiation

Packaging Details : Packaging Details: packed in wooden cases

Delivery Time : 15days

Payment Terms : TT,LC

Supply Ability : 10sets per months

Condition : New

Warranty : 12 months

After-sales Service Provided : Engineers available to service machinery overseas

Installation : Engineer available

Contact Now

FW Series Inflow Pressure Screen for Paper Making Plant

Specifications

Inflow Pressure Screen
1.First-class engineer
2.Long service life
3.Less maintenance
4.ISO&BV certification

Application

Specially used for fine screeing before paper machine for paper recycling.

Main features
1. Advanced structure, strong and durable, convenient dismounting, low energy consumption, high efficiency;
2. Easy operation, continuous work with less faults, lower maintenance cost;
3. Equipped with automatic lubricating device, reduce maintenance;
4. The sealing water flow automatic detection alarm device, ensure the safe operation of equipment;
5. Control interlocking system, ensure the service life of the equipment.

Main specification

Type		FW0.6	FW1	FW1.5	FW2	FW3	FW4	FW5	FW6	FW7
Screen area (m2)		0.6	1	1.5	2	3	4	5	6	7
Concentration of Input Pulp(%)		0.4-0.8
Product Capacity(t/d)	Screen hole(t/d)	30-60	70-130	110-160	140-260	250-400	260-520	350-600	420-700	500-900
Product Capacity(t/d)	Screen slot(t/d)	25-45	55-80	80-120	100-160	150-300	180-320	220-400	260-480	350-600
Pressure of inflow pulp(Mpa)		0.1-0.4
Motor power (kw)		7.5-15	22	30	37	45	55	75	90	110

Buy cheap Inflow Pressure Screen for Paper Making Plant product

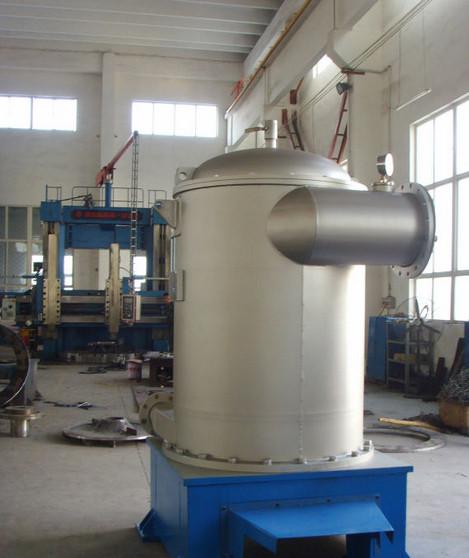

Inflow Pressure Screen for Paper Making Plant Images
